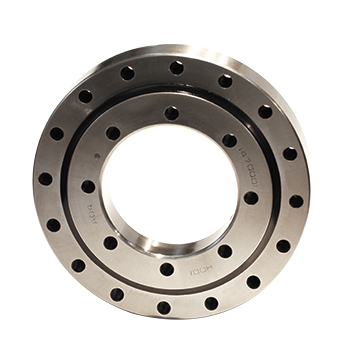

HCRB/HCRBC Crossed Roller Bearings
Crossed Cylindrical Roller Bearings
HCRB/HGCRBC Crossed Roller Bearings

Inner Diameter: 50-800mm

Outer Diameter: 80-1030mm

Width: 13-100mm

Weight: 0.29-274kg


Details DrawingSpecifications Comments

HCRB/HCRBC crossed roller bearing standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body.


Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.


Identification number

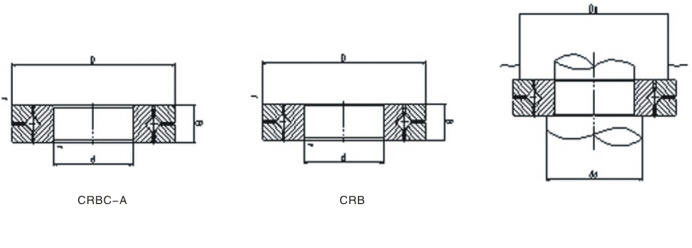

Main dimensions(mm)

Mounting dimensions (mm)

HCRBC

HCRB

Weight

With cage

Full Complement

inner  ring
     d

outer diameter D

width
     B

Chamferr (min)

da

Da

Basic dynamic load rating C (KN)

Basic static load rating Co (KN)

Basic dynamic load rating C (KN)

Basic static load rating Co (KN)

(Kg)

HCRBC 4010

HCRB 4010

40

65

10

0.3

44

54

4.28

5.14

5.98

8.04

0.15

HCRBC 5013

HCRB 5013

50

80

13

0.6

55

71

10.7

12.6

14.2

18.4

0.29

HCRBC 6013

HCRB 6013

60

90

13

0.6

64

81

11.6

14.6

15.4

21.5

0.33

HCRBC 7013

HCRB 7013

70

100

13

0.6

75

91

12.3

16.7

17

25.5

0.38

HCRBC 8016

HCRB 8016

80

120

16

0.6

86

107

18.2

25.5

24.3

37.5

0.74

HCRBC 9016

HCRB 9016

90

130

16

1

98

118

19.4

28.6

25.9

42.1

0.81

HCRBC10020

HCRB 10020

100

150

20

1

108

134

31.5

45.1

39.4

61.1

1.45

HCRBC11020

HCRB 11020

110

160

20

1

118

144

33.5

50.7

41.2

66.7

1.56

HCRBC 12025

HCRB 12025

120

180

25

1.5

132

164

47.7

70.5

59.9

95.4

2.62

HCRBC13025

HCRB 13025

130

190

25

1.5

140

172

49.2

74.8

61

99.8

2.82

HCRBC 14025

HCRB 14025

140

200

25

1.5

151

183

50.7

79.2

64.1

108

2.96

HCRBC15025

HCRB 15025

150

210

25

1.5

160

192

53.8

87.7

65

113

3.16

HCRBC15030

HCRB 15030

150

230

30

1.5

166

202

69.2

108

85.9

144

5.3

HCRBC20025

HCRB 20025

200

260

25

2

208

239

60.2

110

75.3

148

4

HCRBC20030

HCRB 20030

200

280

30

2

218

262

108

178

133

234

6.7

HCRBC20035

HCRB 20035

200

295

35

2

221

274

137

215

168

282

9.58
