Cylindrical roller thrust bearings
Thrust Roller Bearings
Cylindrical roller thrust bearings
Inner Diameter: 180-1280mm
Outer Diameter; 280-1400mm
Weight: 13.4-2140kg
Details DrawingSpecifications Comments

Cylindrical roller thrust bearings are separable. They only carry axial loads in one direction and slight shock loads, but their loading capacity is much higher than thrust ball bearings with same dimensions. They can limit axial displacement of shafts or housing in one direction, so can be as axial locating bearings in one direction. the slippage will formed on the raceways because of the linear velocity differences of two ends of rollers while rolling. So the Limiting speed of these bearings is lower than thrust ball bearings, and they are usually applied to low speed applications.


Metal machined solid cages are used for cylindrical roller thrust bearings which are standard design, but otehr cages also can be provided according to customers.


Cylindrical roller thrust bearings mainly used in heavy machine tools, large power gear boxed for ships, oil rigs, vertical machines, etc.

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

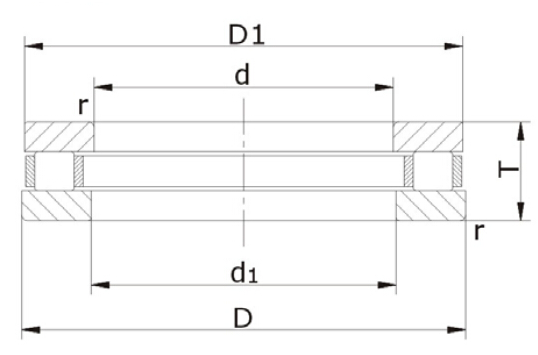

Boundary dimensionsBasic load ratingsDesignationsMass
mmkNCurrentOriginalkg
DD1d1TRM 1M 2rminCoa
15014812748228.6M12-1.51630TTSV1504297/1505
17517315253228.6M12-1.52180TTSV1754297/1758
20320117865254M12-1.52540TTSV2034297/20311
20520317865254M20-1.53370TTSV2054297/20515
23523320873280M20-1.53370TTSV2354297/23518
26526322981304.8M20-1.54130TTSV2654297/26524
32031828095380M24-1.57370TTSV3204297/32042
377375330112457.2M24-2.58230TTSV3774297/37786
380378330112457.2M24M301.58220TTSV3804297/38067
410408355122508M24M30311300TTSV4104297/410115
440438380130508M24M36318500TTSV4404297/440140
495492432146558.8M24M36319100TTSV4954297/495198
525522460155635M24M36320380TTSV5254297/525210
555552482165635M24M36321380TTSV5554297/555275
580577510165710M24M42323540TTSV5804297/580250
610607533178762M30M42324170TTSV6104297/610350
640637550185762M30M42328670TTSV6404297/640410

Boundary dimensionsBasic load ratingsDesignationsMass
mmkNCurrentOriginalkg
DD1d1TRM 1M 2rminCoa
15014812755457.2M12-1.51630TTSX1504379/1507
17517315262457M12-1.52180TTSX1754379/17511
20520317876508M20-1.52540TTSX2054379/20518
23523320885560M20-1.53370TTSX2354379/23526
26526322995609.6M20-1.54130TTSX2654379/26537
320318280112762M20-2.57370TTSX3204379/32062
380378330129914.4M24M301.58550TTSX3804379/380101
4104083551421016M24M30311300TTSX4104379/410130
4404383801521016M24M36318500TTSX4404379/440160
4954924321721066.8M24M36319100TTSX4954379/495210
5255224601801270M24M36320380TTSX5254379/525250
5555524821921270M24M36321380TTSX5554379/555280
5805775101951422.4M24M36321540TTSX5804379/580310
6106075332051520M30M42324170TTSX6104379/610410
640637550214.81740M30M42328670TTSX6404379/640450
7107056102501600M30M42431540TTSX7104379/710850
7507456502601600M30M48438430TTSX7504379/750750
8007957002701700M30M48540150TTSX8004379/800930
