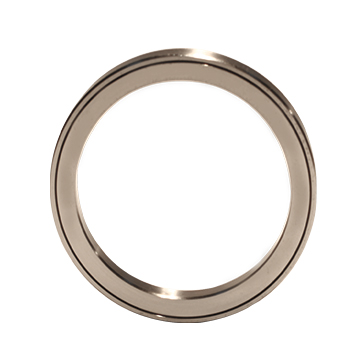

HCRBH Crossed Roller Bearings
Crossed Cylindrical Roller Bearings
HCRBH Crossed Roller Bearings
Inner Diameter: 50-250mm
Outer Diameter: 80-310mm
Width: 13-25mm
Weight: 0.29-4.97kg

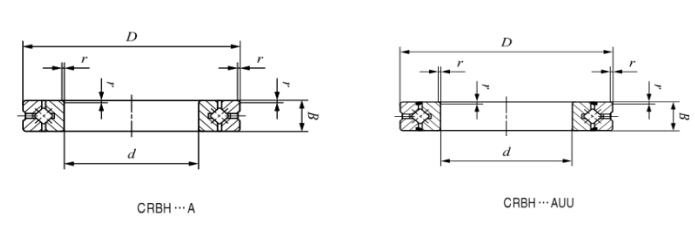

Details DrawingSpecifications Comments

HGCRBH crossed roller bearing series(Integrated Inner/Outer Ring type),  this model is a compact type of model RU with extremely thin outer and inner rings without mounting holes are provided, the model require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.


HGCRBH crossed roller bearing can be used for both inner-ring rotation and outer-ring rotation and the requirement of miniaturized dimension.


HGCRBH crossed roller bearing characteristics:

1. High precision: P4 precision, P2 precision

2. High rigidity: This series bearing have preload

3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment

4. Small size: This series bearing can save space for machine tools


Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

Shaft diameter (mm)

Identification number

Main dimensions

(mm)

Mounting dimensions (mm)

Basic dynamic load rating

Basic static load rating

weight

inner ring d

outer diameter D

width B

Chamfer r(min)

da

Da

C

(KN)

Co

(KN)

(Kg)

50

HCRBH 5013 A

HCRBH 5013 A UU

50

80

13

0.6

56

74

17.3

20.9

0.29

60

HCRBH 6013 A

HCRBH 6013 A UU

60

90

13

0.6

66

84

18.8

24.3

0.33

70

HCRBH 7013 A

HCRBH 7013 A UU

70

100

13

0.6

76

94

20.1

27.7

0.38

80

HCRBH 8016 A

HCRBH 8016 A UU

80

120

16

0.6

88

112

32.1

43.4

0.74

90

HCRBH 9016 A

HCRBH 9016 A UU

90

130

16

0.6

98

122

33.1

46.8

0.81

100

HCRBH 10020 A

HCRBH 10020 A UU

100

150

20

0.6

110

140

50.9

72.2

1.45

110

HCRBH 11020 A

HCRBH 11020 A UU

110

160

20

0.6

120

150

52.4

77.4

1.56

120

HGCRBH 12025 A

HCRBH 12025 A UU

120

180

25

1

132

168

73.4

108

2.62

130

HCRBH 13025 A

HCRBH 13025 A UU

130

190

25

1

142

178

75.9

115

2.82

140

HCRBH 14025 A

HCRBH 14025 A UU

140

200

25

1

152

188

81.9

130

2.96

150

HCRBH 15025 A

HGCRBH 15025 A UU

150

210

25

1

162

198

84.3

138

3.16

200

HCRBH 20025 A

HCRBH 20025 A UU

200

260

25

1

212

248

92.3

169

4

250

HCRBH 25025 A

HCRBH 25025 A UU

250

310

25

1.5

262

298

102

207

4.97
