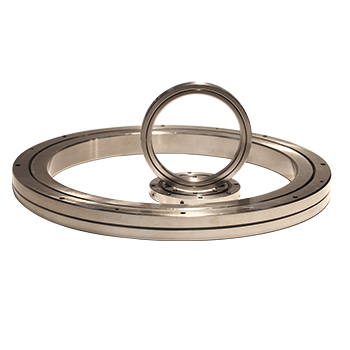

HSX Crossed Roller Bearings
Crossed Cylindrical Roller Bearings
HSX Crossed Roller Bearings
Inner Diameter: 70-500mm
Outer Diameter: 90-320mm
Width: 10-56mm
Weight: 0.3-44kg

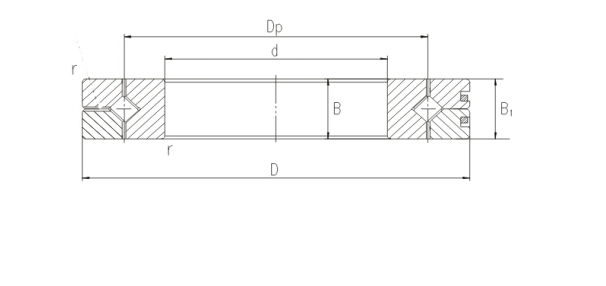

Details DrawingSpecifications Comments

HSX crossed roller bearing series(outer ring division type with inner rotating, thin section),this type has smaller section than HRB series. Due to the extremely thin structure, there is no mounting holes on the outer ring and the inner ring, so the model requires a presser flange or housing.


HSX crossed roller bearing characteristics:

1. High precision: P4 precision, P2 precision

2. High rigidity: This series bearing have preload

3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment

4. Small size: This series bearing can save space for machine tools

Please kindly post your comments,we will attach great importance to it,and give our reply quickly.Thank you.

Identification number

Main dimensions

shoulder height

Basic load rating(axial)

 Basic load    rating(radial)

weight

 inner
 ring
d

 outer  ring D

 Roller pitch circle

diameter Dpw

width
                        B B1

 Greasing     hole
                    φ

r

de

Di

Ca  kN

C0a
 kN

Cr
 kN

Cor   kN

Kg

HSX011814

70

90

80

10

1.2

0.6

79.5

80.5

15.4

51

11

20

0.3

HSX011818

90

115

102

13

1.2

1

101.5

102.5

26

91

18

37

0.4

HSX011820

100

125

112

13

1.2

1

111.5

112.5

28

102

19

41

0.5

HSX011824

120

150

135

16

1.5

1

134.4

135.6

41

146

27

59

0.8

HSX011828

140

175

157

18

1.5

1.1

156.3

157.7

64

240

45

96

1.1

HSX011832

160

200

180

20

1.5

1.1

179.2

180.8

69

275

49

111

1.7

HSX011836

180

225

202

22

2

1.1

201.2

202.8

96

381

69

153

2.3

HSX011840

200

250

225

24

2

1.5

224.2

225.8

102

425

72

170

3.1

HSX011848

240

300

270

28

2

2

269.2

270.8

148

640

105

255

5.3

HSX011860

300

380

340

38

2.5

2.1

339.2

340.8

243

1070

173

425

12

HSX011868

340

420

380

38

2.5

2.1

379.2

380.8

260

1220

185

485

13.5

HSX011880

400

500

450

46

2.5

2.5

449

451

385

1800

275

720

24

HSX0118/500

500

620

560

56

2.5

3

558.8

561.2

560

2750

395

1100

44
